90HP Versatile Agriculture Tractor for Various Farming Applications
Product Description:

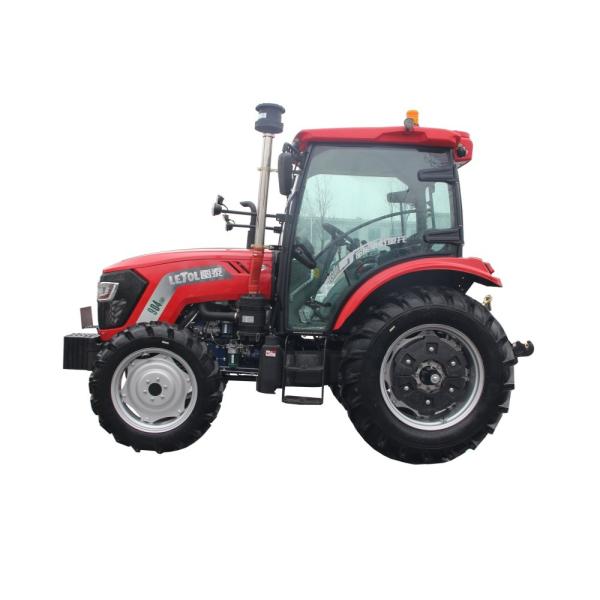

LT904tractor , 90HP,4WD, Dongfanghong or Yunnei engine,It is an
agricultural model developed for medium and small farms. It is
equipped with a high-torque four-cylinder engine, and It is
perfectly integrated, more efficient, and more fuel-efficient.
Simultaneously, it is equipped with a more robust chassis and
synchronizer gearbox, making the operation smoother and bringing
more robust durability and reliability.
Technical Parameters:
| 1 | Engine | Engine | Dongfanghong or Yunnei |
| Power | 90hp |
| Intake method | Turbocharging |
| Rated speed | 2400r/min |
| Number of cylinders | 4 |
| 2 | Transmission system | gearbox | 12F+12R |
| Synchronizer | ● |
| Main clutch | double acting clutch |
| PTO | mechanical control |
| Differential lock | mechanism |
| Power output shaft speed | 540/760rpm or 540/1000 |
| Power take-off spline | 8 or 6 keys |
| 3 | Front engine hood | New engine hood/red | ● |
| 4 | driving system | F/R adjustable steering | ● |
| Front axle (dry field) | ● |
| tire | 9.5-24/14.9-30 |
| Wheel color | silvery |
| Edge valve protection | ● |
| 5 | hydraulic system | Oil joint structure | ● |
| Dual auxiliary cylinder | ● |
| Hydraulic output | 2 groups |
| Hydraulic pump flow rate | 20L/min |
| category | Ⅱ |
| 6 | Counterweight | front | ● |
| back | ● |
| 7 | electrical system | Combination instrument panel (LCD screen, speedometer, tachometer,
water temperature, fuel gauge, timing gauge, oil pressure, etc.) | ● |
| Maintenance free battery | 120AH |
| LED Working Light | ● |
| Rotating warning light | ● |
| Rear license plate light | ● |
| 8 | tank | capacity | 120L |
| 9 | speed | maximum speed | 30.25KM/H |
| 10 | size | weight | 3200kg |
| Dimensions (length x width x height) | 4190x1790x2680mm |
| wheelbase | 2090mm |
| Track width | Front wheel 1300mm, rear wheel adjustable 1300mm-1400mm |
| Ground clearance | 370mm |
Detailed Photos:
Packing and Shipping:
FAQ:
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Weifang City,Shandong
Province,China.
Q2:What after-sales service can your company provide?
A2We can provide technical support and on-site installation
support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:10-25 days according to the different quantity.
