Chinese Micro Mini Loader Machine Skid Steer Loader Skid Steer Rubber Tracked Skid Steer Loaders
EPA CE Diesel Kubota Engine Skid Steer Loader Mini Track Skid Steer Loader Skid Steer Hydraulic Drive With Rubber Track
| Model | JWHT450 | JWHT450 |
| Lifting Capacity(KG) | 450 | 450 |
| Engine Type | HONDA HGX690 | Briggs & Stratton 3864 |
| Engine Capacity(kw/Hp) | 25hp | 23hp |
| Displacement cm3/Number of cylinders | 688/2 | 698/2 |
| Rotation speed per minute(rpm) | 3600 | 3600 |
| Maximum torque NM/rpm | 38.6/2500 | 50/3000 |
| Cooling method | Air-cooled | Air-cooled |
| Fuel/Fuel tank capacity | Gasoline 95#/20L | Gasoline 95#/20L |
| Drive System | Hydraulic four-wheel drive | Hydraulic four-wheel drive |
| Speed(km/h) | 0-5.5(By Scale) | 0-5.5(By Scale) |
| Enhancement of capabilities(kg) | 350 | 300 |
| Traction force(kg) | 409 | 400 |
| Hydraulic drive system(L/bar) | 35/200 | 50/180 |
| Hydraulic oil tank capacity(L) | 40 | 35 |
| Standard Tires | 22*11.00-8 | 18*8.5-8 |
| Electrical system(V) | 12 | 12 |
| Battery Capacity(Ah) | 45 | 36 |
| Braking System | Hydraulic enclosed brake | Hydraulic enclosed brake |
| Drive | Skid steering | Skid steering |
| Hydraulic Cylinder Thrust(KG) | 600 | 600 |
| Overall Dimensions(MM) | 1525*1050*1258 | 1485*1150*1300 |
| Machine Weight(KG) | 900 | 900 |

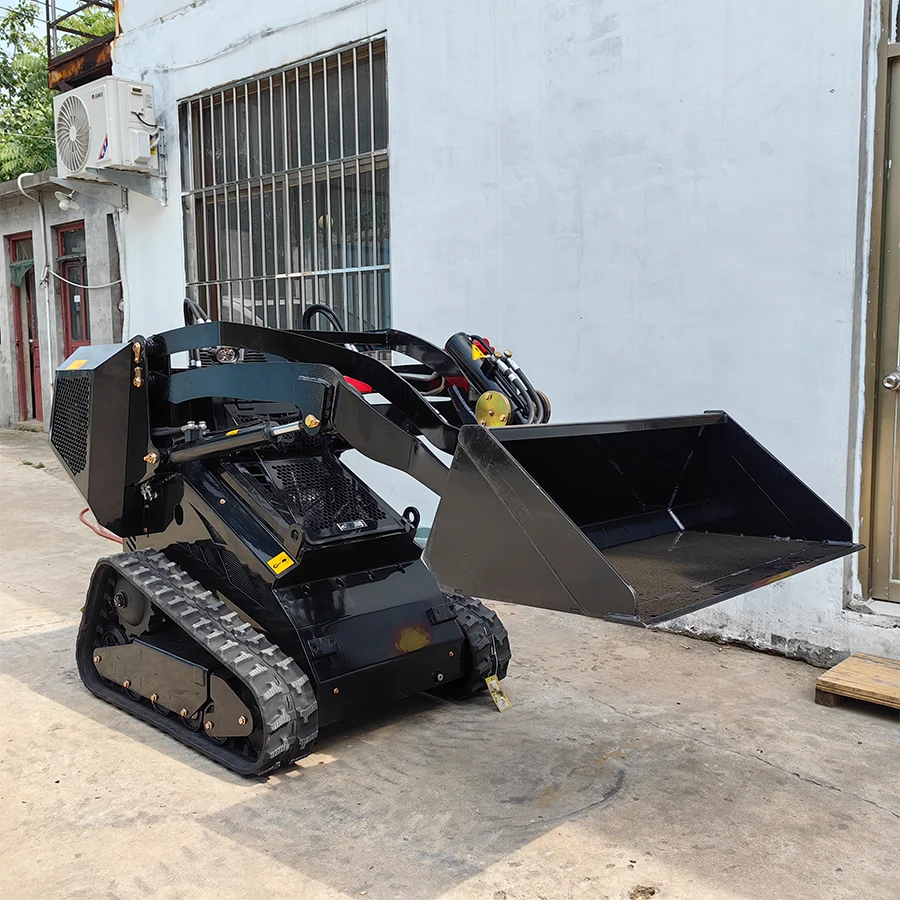

The machine can be attached with different accessories

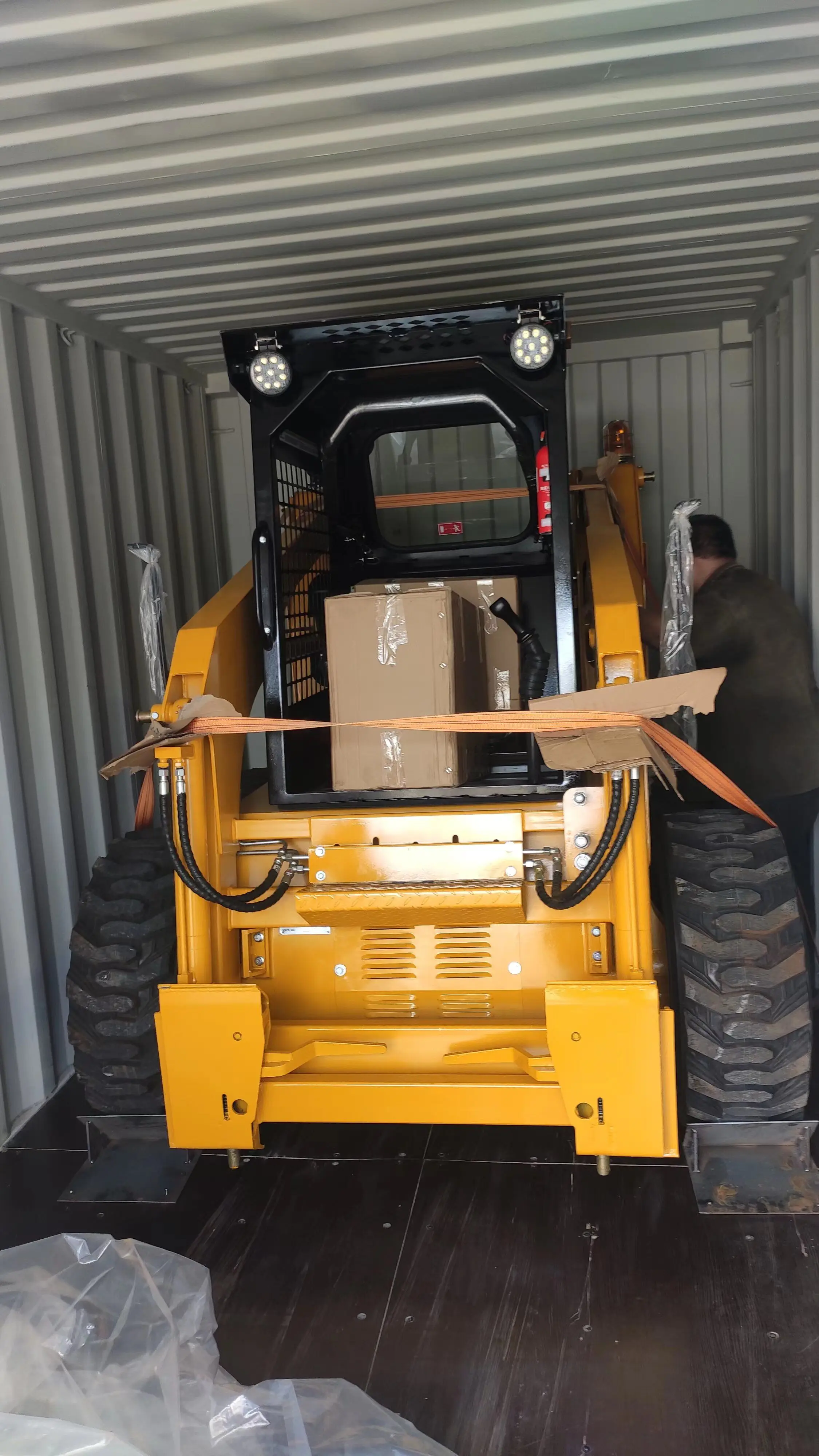

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: What is the machIne advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers, Each machine is carefully tested before send to customer.
Q2: How many units can be put in container?
A: 6 units can be in a 20ft container, 12 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
Q3: Are you able to export less than 1 container of mini excavator? And what's the wooden box's dimension and total weight?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL,wooden box;if 4 unit or more than 4 units suggest used 20ft container.
If do not have trailer,the wooden box dimension is 2.8x1.12x1.4m ,about 4.3m3;if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg
Q4: The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Q5: Spare parts supply
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
