Product Description:

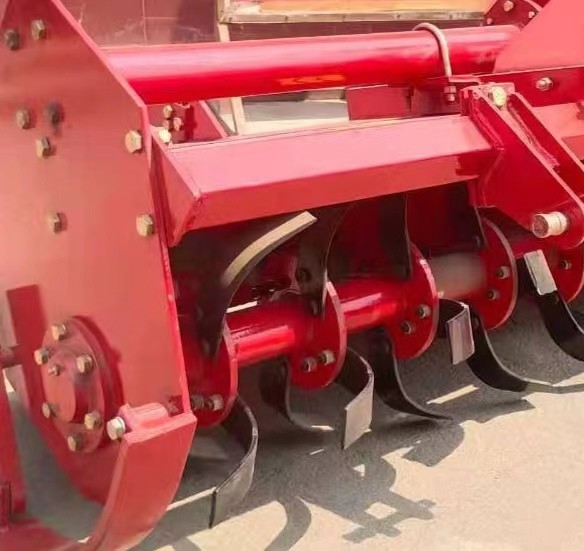

1.1GLN series heavy-duty rotary tiller with side gear transmission, it can be mounted with 15-55hp tractor.
2. Gantry-type Bracket are more stronger.
3. Our machine uses big nodular cast iron gear box with perfect processing, high strength than generally iron gear
box. And it has a view oil hole on its surface to convenient your using.
4. Ajustable Front Pin has two hole to convenient your adjustment.
5. The pallet using S-streamlined design, it adopts a special process, greatly
improves the strength, surface flatness after tillage, better
degree of compaction
6. The Rotary cultivator is a through shaft without intermediately leaking plowing and grass hanging phenomena.
7. It adopts wide knives L-type which hitched on disc knife seat.
Its stubble, soil effect will be far higher than traditional tools.
At a certain speed it can crush straw, reach a multi-purpose
machine
8. Anti-tipping is through the connection plate and steel tube with 2 Spring rack
system is to be achieved. Can be more fine soil particles, more
plain.
9. Integrated welded frame cover plate, so that the whole structure is more compact, more robust
10. Whole machine adopts the polyester powder coated or baking varnish technology with brightly colour, strong and durable paint adhesion.
Technical Parameters:
| Model | 1GLN-125(125 type gearbox) | 1GLN-140(125 type gearbox) | 1GLN-160(190 type gearbox) | 1GLN-180(225 type gearbox) | 1GLN-200(225 type gearbox) |
| Dimensions(L*W*H) | 1450*800*700mm | 1600*800*700mm | 1800*800*700mm | 2000*800*700mm | 2200*800*800mm |
| Weight | 240 kg | 260 kg | 320 kg | 440 kg | 560kg |
| No. of blades | 24 | 28 | 36 | 48 | 54 |
| Working width | 1200mm | 1350mm | 1550mm | 1750mm | 1950mm |
| Working depth | 120mm | 120mm | 120mm | 120mm | 120mm |
| PTO Input speed | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min |
| Power required | 25~30 HP | 325-0 HP | 40~50HP | 60~70 HP | 60-80hp |
Applications:
Packing and Shipping:
Product Packaging and Shipping of Agricultural tools
Our Agricultural tools are carefully packaged and shipped to ensure
the safe delivery of your order.
Packaging:
All of our tools are packaged in sturdy boxes with proper
cushioning materials to prevent any damage during transit.
Smaller tools are individually wrapped and placed in a larger box,
while larger tools are secured with bubble wrap and placed in a
wooden crate for added protection.
